Taw qhia

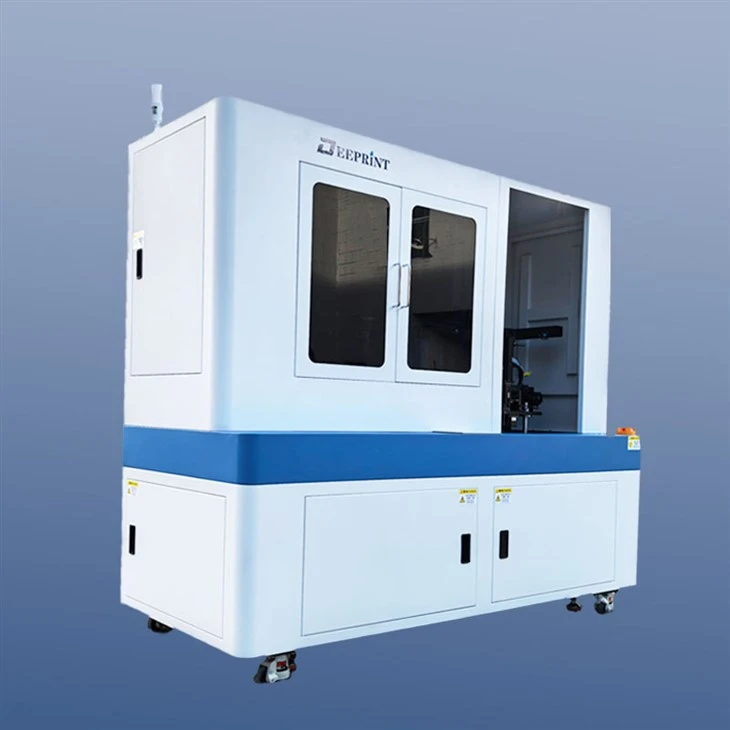

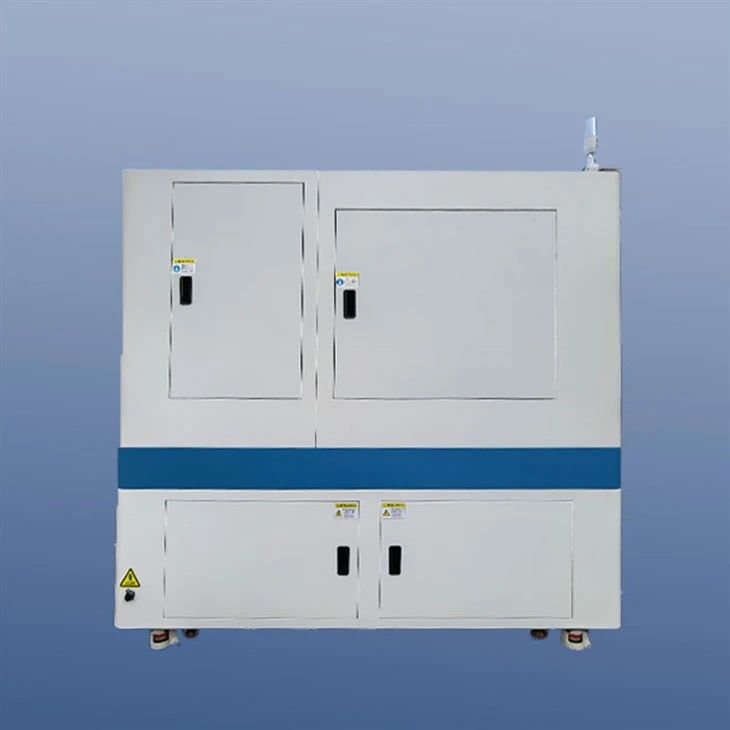

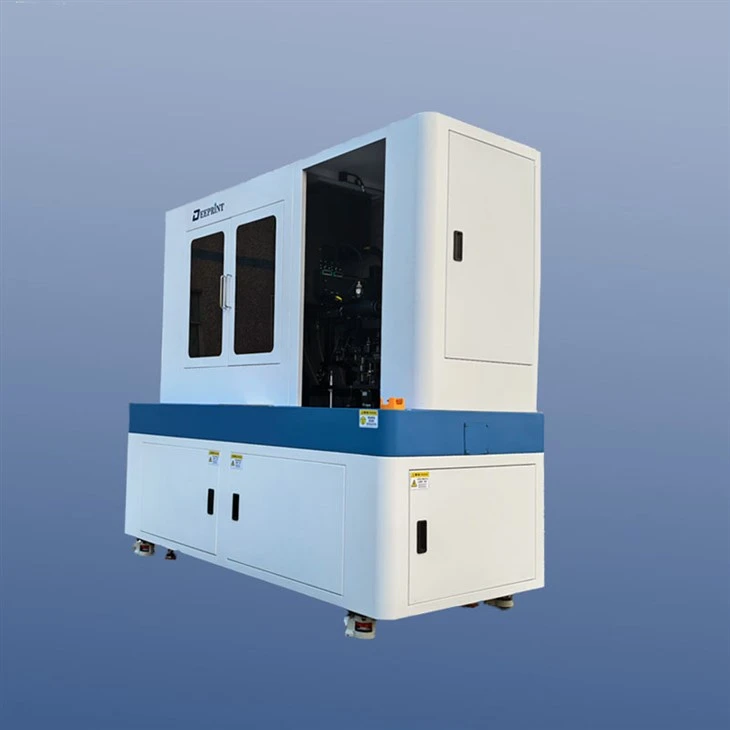

Lub Haus Dej Lub raj mis luam ntawv tshuab yog lub tshuab tshwj xeeb tsim los rau siab -precision UV luam ntawv rau ntawm lub khob haus dej haus; nws txhawb nqa ntau lawm nrog rau kev hloov kho ntawm cov qauv thiab qhov ntev.

Parameter

Yam khoom	Specification
Khoom npe	Cylindrical Inkjet tshuab luam ntawv
Yam khoom qauv	DF 1
Khoom Dia	45mm-120mm
Luam Length	30mm-270 hli
Printhead	Toshiba CF3
Printhead Quantity	1-5 pcs
Luam Ntawv Ceev	Ceev ceev li 15 vib nas this ib thooj
Printing Precision	600 × 1800 DPI
Xim Xim	W, K, C, M, Y, Lc, Lm, V
Ink Drop Size	3.5 PL
Kev luam ntawv hom	Xim + Dawb + Varnish
Kev luam ntawv	360℃Rotary Printing
Taper Range	0-5 degree
Kho qhov system	LED UV Teeb
Kev ua haujlwm Software	RIPprint
Cov ntaub ntawv interface	Gigabit Ethernet
Txhawb cov duab hom	TIFF, JPG, EPS, PDF, PNG, AI, PSD
Tshuab Dimensions	1950 × 870 × 1800 hli
Tshuab hnyav	4 50kg
Fais fab mov	50Hz AC220 / 110V ± 10A (yuav tsum tau xaim hauv av)
Daim ntawv pov thawj	CE / ROHS / SGS tau pom zoo
Ua haujlwm kub	20℃- 30 degree

Cov yam ntxwv ntawm Kev Haus Dej Lub raj mis tshuab luam ntawv

High -Precision Printing
Lub Haus Dej Lub raj mis tshuab luam ntawv yog nruab nrog Toshiba CF3 printheads, muaj kev daws teeb meem ntawm 600 × 1800 DPI thiab 3.5 pL droplet tswj. Qhov no ua kom cov ntawv nkig thiab cov gradients du, lav cov qauv sib xws ntawm txhua lub raj mis.

High -Adhesion Ink
LED UV number case kho tam sim; cov qauv luam tawm yog khawb-resistant, cawv-resistant, thiab tsis yog -tev, tuav lawv cov clarity thiab aesthetic thov nyob rau lub sij hawm ntev - siv.

Siab -Speed Production
Nrog lub sij hawm luam tawm ntawm kwv yees li 15 vib nas this ib lub raj mis, lub tshuab tuaj yeem tsim 500-1000 lub raj mis hauv ib teev, ua tau raws li qhov xav tau ntawm cov khoom loj - ntim xaj.

Kev kho kom haum

Feature	Kev piav qhia
Luam Loj	Customizable luam ntawv ntau yam raws li lub raj mis qhov siab, txoj kab uas hla, thiab taper.
Printhead Quantity	Kev xaiv sib xyaw ua ke ntawm 1-5 muaj cov tshuab luam ntawv rau ib zaug - dhau kev luam ntawv.
Hom cwj mem	Kev xaiv UV number case formulations thiab xim ua ke.
Lub raj mis Fixtures	Txhawb nqa cov khoom siv rau cov fwj ncaj, lub raj mis nkhaus, thiab cov fwj tsis sib xws -.
Kev Tswj Kub Kub	Customizable kub ntau rau UV teeb thiab printheads.
Tswj System	PLC thiab touchscreen interface configurable raws li qhov yuav tsum tau ua.
Ntau lawm ceev	Ib zaug - lub raj mis luam ntawv lub sijhawm hloov kho raws li qhov xav tau ntim ntau lawm.
Tshuab Lub Cev Khoom & Xim	Kev xaiv rau cov khoom siv hlau sib txawv thiab cov xim pleev xim ua tiav.

Cov ntaub ntawv tsim nyog rau kev luam ntawv

Cov ntaub ntawv tseem ceeb tau sib xws nrog Lub Khob Dej Lub raj mis Lub Tshuab Luam Ntawv suav nrog:

• iav
• Yas (piv txwv li, PET, PP)
• Hlau (xws li, aluminium, tin, stainless hlau)
• Ceramic
• Ntawv / Cardboard

FAQ

Q: Koj puas yog cov chaw tsim khoom lossis lub tuam txhab lag luam?

A: Peb yog cov chaw tsim khoom nrog peb tus kheej cov chaw tsim khoom.

Q: Koj lub sijhawm xa khoom yog dab tsi?

A: Peb lub sijhawm khoom xa tuaj yog 15-30 hnub, nyob ntawm qhov kev txiav txim kom muaj nuj nqis thiab hom khoom.

Q: Txoj kev them nyiaj twg raug lees txais rau cov qauv?

A: Peb lees txais T / T (kev hloov pauv hauv txhab nyiaj) thiab Alipay.

Q: Hom ntim twg koj muab?

A: Peb cov khoom tuaj nrog thawj lub Hoobkas ntim. Peb tuaj yeem muab cov ntim nruab nrab lossis ntim ntim raws li cov neeg siv khoom xav tau.

Q: Koj txoj cai qauv yog dab tsi?

A: Yog tias cov khoom muaj nyob hauv Tshuag, peb tuaj yeem muab cov qauv. Txawm li cas los xij, tus neeg siv khoom xav tau them tus nqi coj mus kuaj thiab tus nqi xa khoom xa tuaj.

Q: Koj puas kuaj tag nrho cov khoom ua ntej xa khoom?

A: Yog. Tag nrho cov khoom raug kuaj 100% ua ntej xa khoom, thiab peb yuav muab cov duab ntxaws ntxaws rau cov neeg siv khoom pom zoo ua ntej xa zaub mov.

Q: High -precision luam ntawv ua tiav li cas?

A: Lub Haus Dej Lub raj mis tshuab luam ntawv siv qhov kev daws teeb meem ntawm 600 × 1800 DPI thiab 3.5 pL micro-tej cov ntawv luam tawm los tsim cov ntawv zoo thiab cov teebmeem gradient.

Q: Lub raj mis zoo li cas nrog cov khoom siv no?

A: Nws yog sib xws nrog ncaj-sib fwj, nkhaus fwj, thiab lub raj mis nrog taper ntawm 0-5 degree, txhawb ib txoj kab uas hla ntawm Ø45-120 mm.

Q: Cov xim twg tuaj yeem luam tawm?

A: Nws txhawb 8-xim luam ntawv- suav nrog Dawb, CMYK, Lc/Lm, thiab Varnish-xa cov xim ntuj thiab zoo li lub neej.

Q: Yuav ua li cas hloov tus number case?

A: Featuring pem hauv ntej -loading, loj- muaj peev xwm number case cartridge tsim, nws tso cai rau hloov ceev thiab yooj yim refilling yam tsis cuam tshuam ntau lawm.

Q: Lub kaum sab xis luam ntawv puas tuaj yeem hloov kho?

A: Lub PLC -tswj fixture cia li kho lub raj mis lub kaum sab xis kom paub meej kev luam ntawv zoo.
